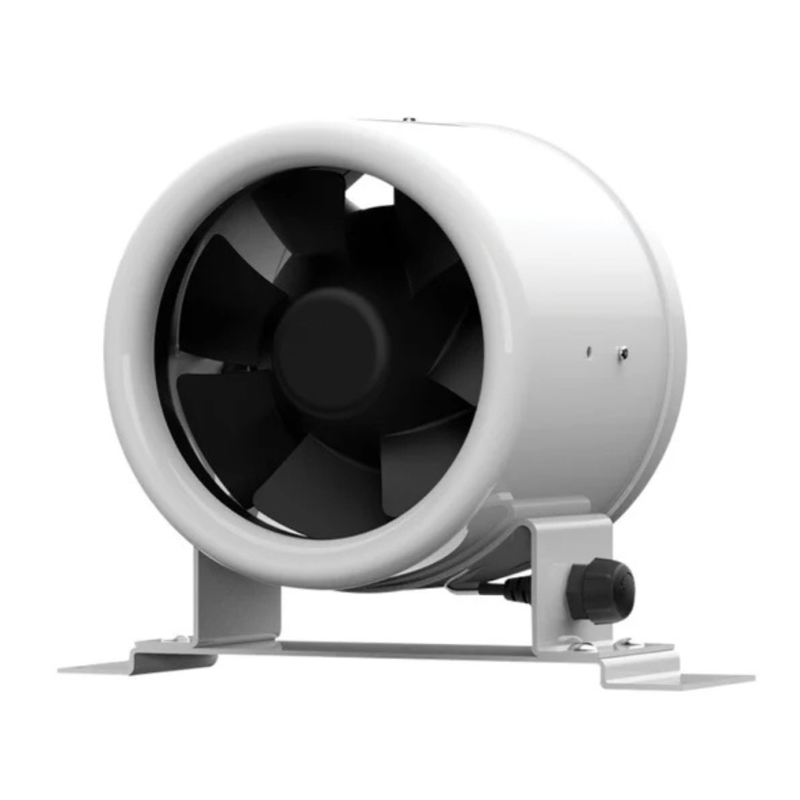

The Elta Jetflow SJMF 125 Inline Mixed Flow Fan – Single Phase EC (125mm) is a high-efficiency ventilation fan designed for residential and light commercial HVAC systems. Featuring a powerful mixed-flow impeller and brushless EC motor, it delivers strong airflow while maintaining low energy consumption and quiet operation. The compact galvanized steel casing allows easy installation within 125mm duct systems, ceiling voids, or ventilation shafts. Designed for reliability and durability, the SJMF 125 provides efficient air extraction or supply for bathrooms, kitchens, offices, and general ducted ventilation applications.
Galvanized steel fan casing
High-performance mixed flow impeller
Brushless EC motor with sealed ball bearings
Durable motor housing with corrosion protection
Weather-resistant electrical components
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 125
Duct Diameter: 125 mm
Motor Type: Brushless EC motor (single phase)
Voltage: 220–240V / 50–60Hz
Airflow Capacity: Approx. 350–360 m³/h
Power Consumption: Approx. 30–35 W
Current: Approx. 0.25–0.30 A
Speed Control: Compatible with 0-10V, PWM, or potentiometer control
Protection Rating: IPX4
Maximum Operating Temperature: Up to 60°C
Estimated Delivery: 2–5 Working Days
Shipping costs will be calculated during checkout.
Check delivery options at checkout
The Elta Jetflow SJMF 125 Inline Mixed Flow Fan – Single Phase EC (125mm) is a high-efficiency ventilation fan designed for residential and light commercial HVAC systems. Featuring a powerful mixed-flow impeller and brushless EC motor, it delivers strong airflow while maintaining low energy consumption and quiet operation. The compact galvanized steel casing allows easy installation within 125mm duct systems, ceiling voids, or ventilation shafts. Designed for reliability and durability, the SJMF 125 provides efficient air extraction or supply for bathrooms, kitchens, offices, and general ducted ventilation applications.
Galvanized steel fan casing
High-performance mixed flow impeller
Brushless EC motor with sealed ball bearings
Durable motor housing with corrosion protection
Weather-resistant electrical components
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 125
Duct Diameter: 125 mm
Motor Type: Brushless EC motor (single phase)
Voltage: 220–240V / 50–60Hz
Airflow Capacity: Approx. 350–360 m³/h
Power Consumption: Approx. 30–35 W
Current: Approx. 0.25–0.30 A
Speed Control: Compatible with 0-10V, PWM, or potentiometer control
Protection Rating: IPX4
Maximum Operating Temperature: Up to 60°C
