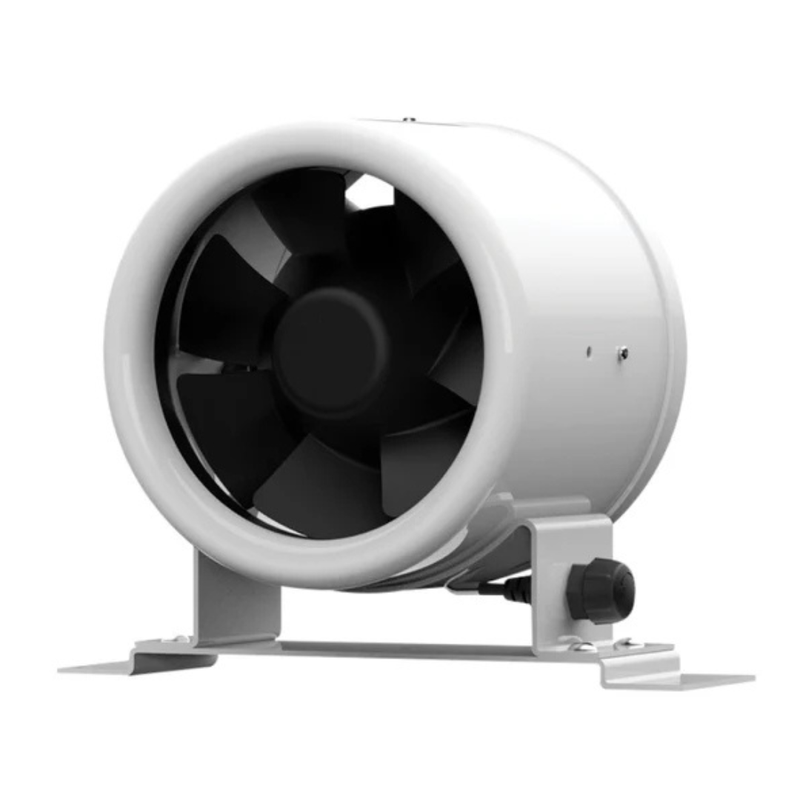

The Elta Jetflow SJMF 150 Inline Mixed Flow Fan – Single Phase EC (150mm) is a high-efficiency ventilation solution designed for residential, commercial, and industrial duct systems. It features a double mixed-flow impeller driven by a brushless EC motor, delivering strong airflow with low energy consumption and quiet performance. The compact inline design allows easy installation in 150mm ductwork or ceiling voids. With variable speed control compatibility and durable construction, the SJMF 150 fan provides reliable air supply or extraction for kitchens, offices, factories, and HVAC ventilation systems.
Aluminium or cold-rolled steel fan casing
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective coating
Durable electrical components with IPX4 protection
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 150
Duct Diameter: 150 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50–60Hz
Speed: Approx. 4980 RPM
Airflow Capacity: Up to 0.144 m³/s (≈518 m³/h)
Power Consumption: Approx. 49 W
Current: Approx. 0.39 A
Static Pressure: Up to 299 Pa
Noise Level: Approx. 51 dB(A) at 3m
Protection Rating: IPX4
Maximum Operating Temperature: Up to 60°C
Speed Control: Compatible with 0–10V, PWM, or potentiometer controllers
Electrical Connection: 1.5 m mains lead with UK 3-pin plug
Estimated Delivery: 2–5 Working Days
Shipping costs will be calculated during checkout.
Check delivery options at checkout
The Elta Jetflow SJMF 150 Inline Mixed Flow Fan – Single Phase EC (150mm) is a high-efficiency ventilation solution designed for residential, commercial, and industrial duct systems. It features a double mixed-flow impeller driven by a brushless EC motor, delivering strong airflow with low energy consumption and quiet performance. The compact inline design allows easy installation in 150mm ductwork or ceiling voids. With variable speed control compatibility and durable construction, the SJMF 150 fan provides reliable air supply or extraction for kitchens, offices, factories, and HVAC ventilation systems.
Aluminium or cold-rolled steel fan casing
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective coating
Durable electrical components with IPX4 protection
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 150
Duct Diameter: 150 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50–60Hz
Speed: Approx. 4980 RPM
Airflow Capacity: Up to 0.144 m³/s (≈518 m³/h)
Power Consumption: Approx. 49 W
Current: Approx. 0.39 A
Static Pressure: Up to 299 Pa
Noise Level: Approx. 51 dB(A) at 3m
Protection Rating: IPX4
Maximum Operating Temperature: Up to 60°C
Speed Control: Compatible with 0–10V, PWM, or potentiometer controllers
Electrical Connection: 1.5 m mains lead with UK 3-pin plug
