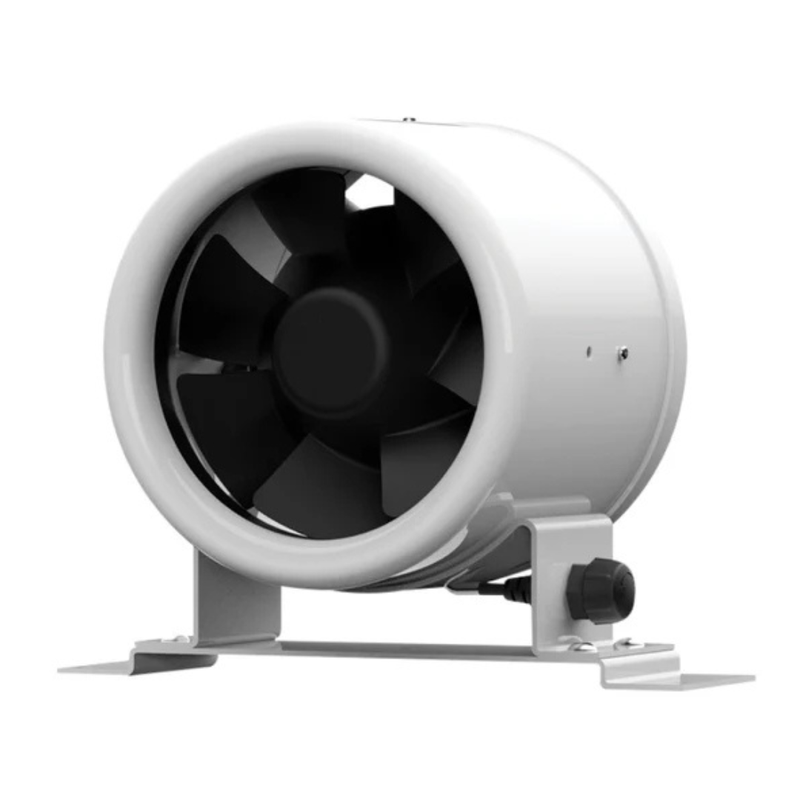

The Elta Jetflow SJMF 200 Inline Mixed Flow Fan – Single Phase EC (200mm) is a powerful and energy-efficient ventilation fan designed for commercial, residential, and industrial duct systems. It features a high-efficiency double mixed-flow impeller driven by a brushless EC motor, delivering strong airflow with low power consumption and quiet performance. The robust aluminium or steel casing ensures durability while allowing easy installation within 200mm ductwork or ceiling voids. With variable speed control compatibility and reliable construction, the SJMF 200 provides effective air extraction or supply for HVAC systems, kitchens, offices, and industrial ventilation applications.
Aluminium or cold-rolled steel fan casing
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective coating
Durable IPX4-rated motor housing
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 200
Duct Diameter: 200 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50Hz
Speed: Approx. 3740 RPM
Airflow Capacity: 0.269 m³/s (≈968 m³/h)
Input Power: 0.100 kW (100 W)
Peak Current: 0.79 A
Overall Efficiency: ≈64.9%
Noise Level: ≈52 dB(A) at 3m
Maximum Operating Temperature: Up to +60°C
Protection Rating: IPX4
Speed Control: Compatible with 0-10V, PWM or potentiometer controllers
Electrical Connection: 1.5 m mains lead with UK 3-pin plug
Installation: Inline duct installation or ceiling void mounting
Estimated Delivery: 2–5 Working Days
Shipping costs will be calculated during checkout.
Check delivery options at checkout
The Elta Jetflow SJMF 200 Inline Mixed Flow Fan – Single Phase EC (200mm) is a powerful and energy-efficient ventilation fan designed for commercial, residential, and industrial duct systems. It features a high-efficiency double mixed-flow impeller driven by a brushless EC motor, delivering strong airflow with low power consumption and quiet performance. The robust aluminium or steel casing ensures durability while allowing easy installation within 200mm ductwork or ceiling voids. With variable speed control compatibility and reliable construction, the SJMF 200 provides effective air extraction or supply for HVAC systems, kitchens, offices, and industrial ventilation applications.
Aluminium or cold-rolled steel fan casing
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective coating
Durable IPX4-rated motor housing
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 200
Duct Diameter: 200 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50Hz
Speed: Approx. 3740 RPM
Airflow Capacity: 0.269 m³/s (≈968 m³/h)
Input Power: 0.100 kW (100 W)
Peak Current: 0.79 A
Overall Efficiency: ≈64.9%
Noise Level: ≈52 dB(A) at 3m
Maximum Operating Temperature: Up to +60°C
Protection Rating: IPX4
Speed Control: Compatible with 0-10V, PWM or potentiometer controllers
Electrical Connection: 1.5 m mains lead with UK 3-pin plug
Installation: Inline duct installation or ceiling void mounting
