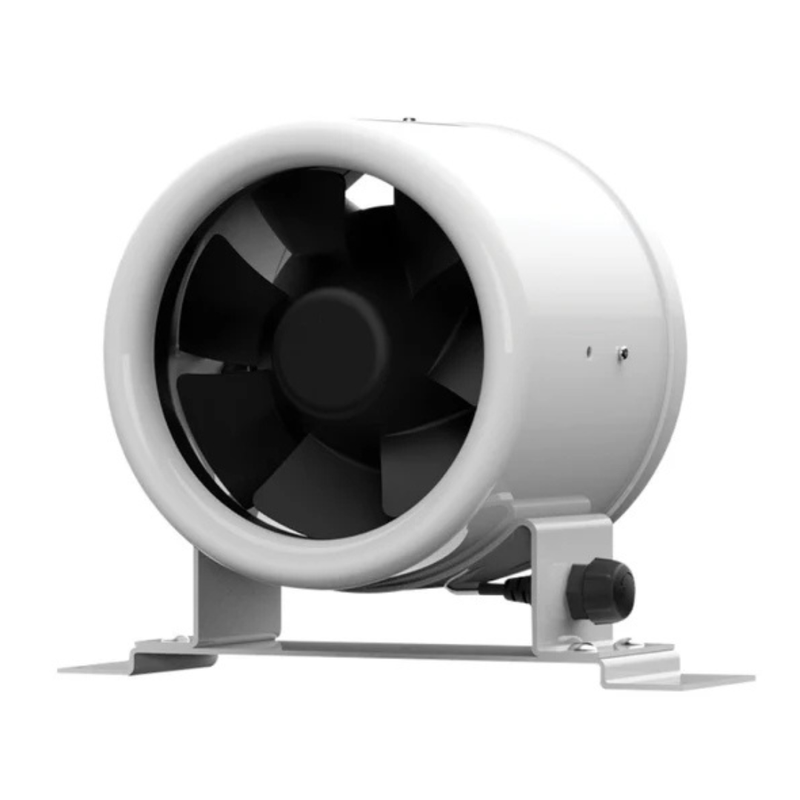

The Elta Jetflow SJMF 250 EC Inline Mixed Flow Fan – 250mm Single Phase is a high-performance ventilation solution designed for commercial, industrial, and residential HVAC systems. It features a high-efficiency jet-design mixed-flow impeller powered by a brushless EC motor, delivering powerful airflow while maintaining low energy consumption and quiet operation. The durable aluminium or cold-rolled steel casing ensures long service life and easy installation within 250mm duct systems. With variable speed control capability and reliable construction, the SJMF 250 fan provides efficient air extraction or supply for offices, kitchens, factories, and general ventilation systems.
Aluminium or cold-rolled steel fan casing
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective coating
IPX4-rated motor housing for moisture protection
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 250
Duct Diameter: 250 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50–60Hz
Speed: Approx. 3195 RPM
Airflow Capacity: Up to 0.446 m³/s (≈1605 m³/h)
Input Power: Approx. 0.172 kW
Peak Current: Approx. 1.30 A
Static Pressure: Up to 340 Pa
Noise Level: Approx. 56 dB(A) at 3m
Protection Rating: IPX4
Maximum Operating Temperature: Up to +60°C
Speed Control: Compatible with 0–10V, PWM or potentiometer control
Electrical Connection: 1.5m mains lead with UK 3-pin plug
Estimated Delivery: 2–5 Working Days
Shipping costs will be calculated during checkout.
Check delivery options at checkout
The Elta Jetflow SJMF 250 EC Inline Mixed Flow Fan – 250mm Single Phase is a high-performance ventilation solution designed for commercial, industrial, and residential HVAC systems. It features a high-efficiency jet-design mixed-flow impeller powered by a brushless EC motor, delivering powerful airflow while maintaining low energy consumption and quiet operation. The durable aluminium or cold-rolled steel casing ensures long service life and easy installation within 250mm duct systems. With variable speed control capability and reliable construction, the SJMF 250 fan provides efficient air extraction or supply for offices, kitchens, factories, and general ventilation systems.
Aluminium or cold-rolled steel fan casing
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective coating
IPX4-rated motor housing for moisture protection
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 250
Duct Diameter: 250 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50–60Hz
Speed: Approx. 3195 RPM
Airflow Capacity: Up to 0.446 m³/s (≈1605 m³/h)
Input Power: Approx. 0.172 kW
Peak Current: Approx. 1.30 A
Static Pressure: Up to 340 Pa
Noise Level: Approx. 56 dB(A) at 3m
Protection Rating: IPX4
Maximum Operating Temperature: Up to +60°C
Speed Control: Compatible with 0–10V, PWM or potentiometer control
Electrical Connection: 1.5m mains lead with UK 3-pin plug
