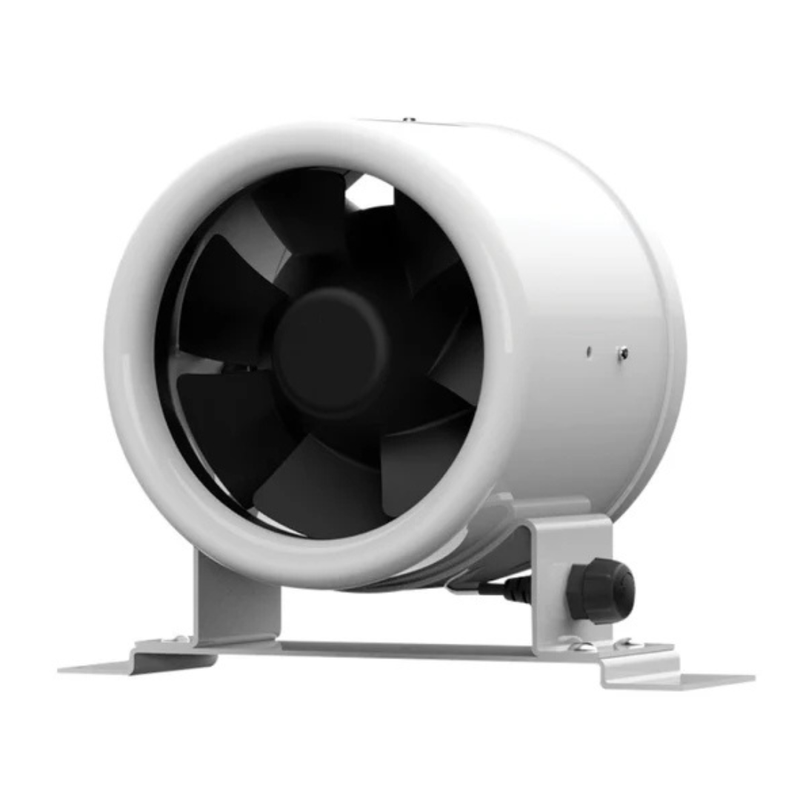

The Elta Jetflow SJMF 315 Inline Mixed Flow Fan – Single Phase EC, 315mm is a powerful and energy-efficient ventilation solution designed for commercial, industrial, and residential HVAC systems. Equipped with a high-efficiency double mixed-flow impeller and brushless EC motor, it delivers strong airflow while maintaining low energy consumption and quiet operation. The robust aluminium or steel casing ensures durability and long service life. Designed for installation within 315mm duct systems, the fan supports variable speed control via 0–10V or PWM, making it ideal for offices, kitchens, factories, and general ventilation applications.
Aluminium or cold-rolled steel fan casing
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective finish
IPX4 motor housing for moisture protection
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 315
Duct Diameter: 315 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50–60Hz
Speed: Approx. 3000 RPM
Airflow Capacity: Up to 0.815 m³/s (≈2930 m³/h)
Input Power: Approx. 0.375 kW
Peak Current: Approx. 2.71 A
Static Pressure: Up to 434 Pa
Noise Level: Approx. 62 dB(A) at 3m
Protection Rating: IPX4
Estimated Delivery: 2–5 Working Days
Shipping costs will be calculated during checkout.
Check delivery options at checkout
The Elta Jetflow SJMF 315 Inline Mixed Flow Fan – Single Phase EC, 315mm is a powerful and energy-efficient ventilation solution designed for commercial, industrial, and residential HVAC systems. Equipped with a high-efficiency double mixed-flow impeller and brushless EC motor, it delivers strong airflow while maintaining low energy consumption and quiet operation. The robust aluminium or steel casing ensures durability and long service life. Designed for installation within 315mm duct systems, the fan supports variable speed control via 0–10V or PWM, making it ideal for offices, kitchens, factories, and general ventilation applications.
Aluminium or cold-rolled steel fan casing
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective finish
IPX4 motor housing for moisture protection
Product Type: Inline Mixed Flow Duct Fan
Model: Jetflow SJMF 315
Duct Diameter: 315 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50–60Hz
Speed: Approx. 3000 RPM
Airflow Capacity: Up to 0.815 m³/s (≈2930 m³/h)
Input Power: Approx. 0.375 kW
Peak Current: Approx. 2.71 A
Static Pressure: Up to 434 Pa
Noise Level: Approx. 62 dB(A) at 3m
Protection Rating: IPX4
