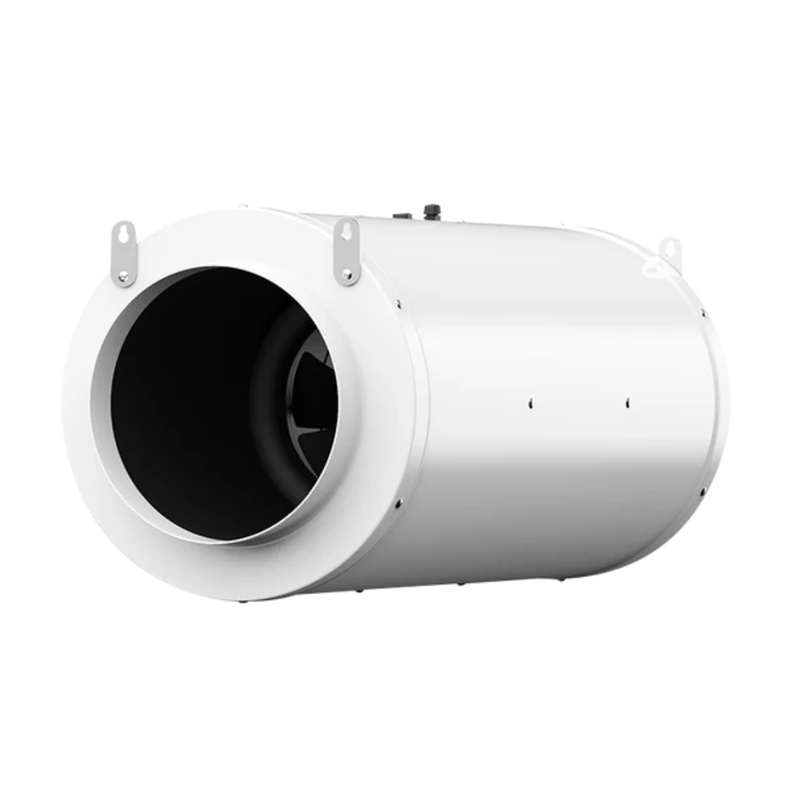

The Elta SJMF 200-S Inline Mixed Flow Fan – 200mm Single Phase EC Silent Jetflow is a high-performance ventilation fan designed for quiet and efficient airflow in HVAC duct systems. It features an advanced double mixed-flow impeller powered by a brushless EC motor, delivering powerful airflow with low energy consumption. The acoustic enclosure significantly reduces noise, making it suitable for offices, homes, and commercial buildings. Designed for 200mm duct installations, the fan supports 0–10V speed control and simple installation with a mains lead and plug, ensuring reliable and energy-efficient ventilation.
Aluminium or cold-rolled steel fan casing
Acoustic insulated housing for silent operation
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective coating
Product Type: Inline Mixed Flow Duct Fan (Silent Model)
Model: SJMF 200-S Jetflow
Duct Diameter: 200 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50Hz
Speed: Approx. 3730 RPM
Airflow Capacity: Up to 0.269 m³/s (≈269 L/s)
Static Pressure: Up to 388 Pa
Input Power: Approx. 0.099 kW (≈80–100 W)
Current: Approx. 0.70–0.79 A
Noise Level: Approx. 40–42 dB(A) at 3m
Protection Rating: IPX4
Estimated Delivery: 2–5 Working Days
Shipping costs will be calculated during checkout.
Check delivery options at checkout
The Elta SJMF 200-S Inline Mixed Flow Fan – 200mm Single Phase EC Silent Jetflow is a high-performance ventilation fan designed for quiet and efficient airflow in HVAC duct systems. It features an advanced double mixed-flow impeller powered by a brushless EC motor, delivering powerful airflow with low energy consumption. The acoustic enclosure significantly reduces noise, making it suitable for offices, homes, and commercial buildings. Designed for 200mm duct installations, the fan supports 0–10V speed control and simple installation with a mains lead and plug, ensuring reliable and energy-efficient ventilation.
Aluminium or cold-rolled steel fan casing
Acoustic insulated housing for silent operation
High-efficiency double mixed-flow impeller
Brushless EC motor with sealed heavy-duty bearings
Corrosion-resistant protective coating
Product Type: Inline Mixed Flow Duct Fan (Silent Model)
Model: SJMF 200-S Jetflow
Duct Diameter: 200 mm
Motor Type: Brushless EC Motor (Single Phase)
Voltage: 220–240V / 50Hz
Speed: Approx. 3730 RPM
Airflow Capacity: Up to 0.269 m³/s (≈269 L/s)
Static Pressure: Up to 388 Pa
Input Power: Approx. 0.099 kW (≈80–100 W)
Current: Approx. 0.70–0.79 A
Noise Level: Approx. 40–42 dB(A) at 3m
Protection Rating: IPX4
