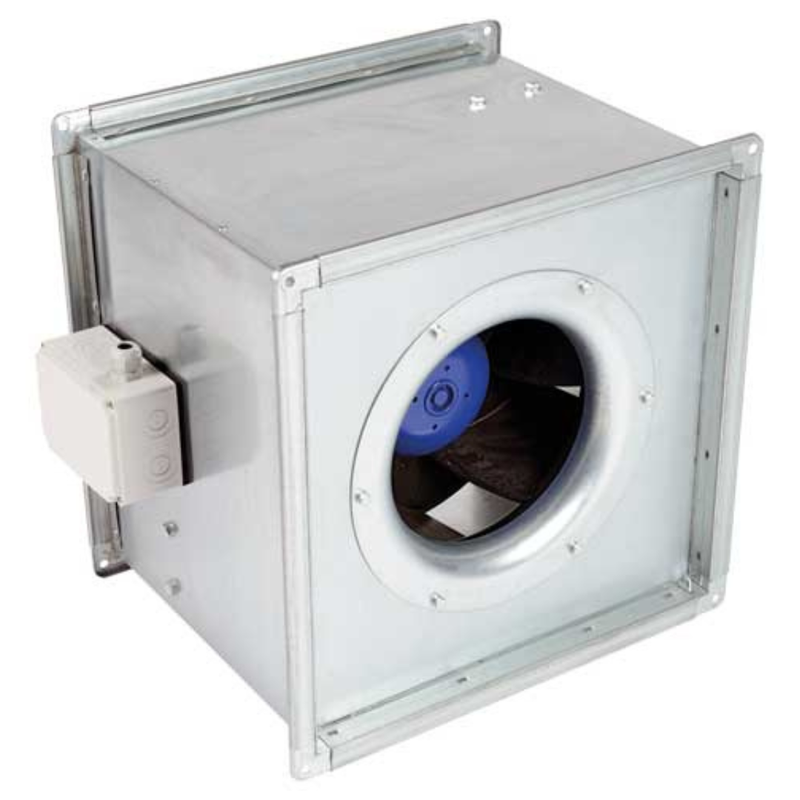

The Elta SMB650 Inline Mixed Flow Box Fan – 650 mm Single Phase AC is a high‑capacity ventilation fan from Elta’s mixed‑flow Multiflow SMB series, designed for commercial and industrial HVAC duct systems. Featuring a heavy‑duty pre‑galvanised steel casing with Ductmate flanged connections, and a backward‑curved aerofoil mixed‑flow impeller, it delivers powerful airflow with excellent efficiency and reduced noise. Powered by a reliable single‑phase AC external rotor motor, the SMB650 is ideal for large extract and supply applications in factories, warehouses, retail spaces, workshops, and other large duct networks requiring strong, consistent ventilation performance.
Casing: Pre‑galvanised sheet steel with Ductmate flanged connections for secure duct installation
Impeller: High‑efficiency backward‑curved aerofoil mixed‑flow blades
Motor: Single‑phase AC external rotor with sealed bearings for durability
Operating Temperature: Rated up to +60 °C
Finish: Corrosion‑resistant protective coating
Product Type: Inline Mixed Flow Box Fan (Multiflow SMB series)
Model: SMB650 / 4‑1AC (Single‑Phase AC)
Fan Diameter: 650 mm
Casing Material: Pre‑galvanised steel with flange connections
Impeller Type: Backward‑curved aerofoil mixed‑flow blades
Motor Type: Single‑phase AC external rotor motor
Voltage: 230–240 V AC / 50 Hz
Operating Temperature: Up to +60 °C
Installation: Inline duct mounting with flanged ends
Applications: HVAC extract and supply ventilation in industrial, commercial, and large building duct systems
Estimated Delivery: 2–5 Working Days
Shipping costs will be calculated during checkout.
Check delivery options at checkout
The Elta SMB650 Inline Mixed Flow Box Fan – 650 mm Single Phase AC is a high‑capacity ventilation fan from Elta’s mixed‑flow Multiflow SMB series, designed for commercial and industrial HVAC duct systems. Featuring a heavy‑duty pre‑galvanised steel casing with Ductmate flanged connections, and a backward‑curved aerofoil mixed‑flow impeller, it delivers powerful airflow with excellent efficiency and reduced noise. Powered by a reliable single‑phase AC external rotor motor, the SMB650 is ideal for large extract and supply applications in factories, warehouses, retail spaces, workshops, and other large duct networks requiring strong, consistent ventilation performance.
Casing: Pre‑galvanised sheet steel with Ductmate flanged connections for secure duct installation
Impeller: High‑efficiency backward‑curved aerofoil mixed‑flow blades
Motor: Single‑phase AC external rotor with sealed bearings for durability
Operating Temperature: Rated up to +60 °C
Finish: Corrosion‑resistant protective coating
Product Type: Inline Mixed Flow Box Fan (Multiflow SMB series)
Model: SMB650 / 4‑1AC (Single‑Phase AC)
Fan Diameter: 650 mm
Casing Material: Pre‑galvanised steel with flange connections
Impeller Type: Backward‑curved aerofoil mixed‑flow blades
Motor Type: Single‑phase AC external rotor motor
Voltage: 230–240 V AC / 50 Hz
Operating Temperature: Up to +60 °C
Installation: Inline duct mounting with flanged ends
Applications: HVAC extract and supply ventilation in industrial, commercial, and large building duct systems
